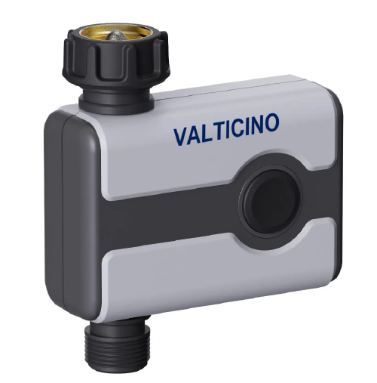

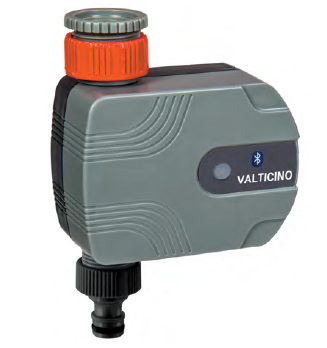

ZR-T-BT

Battery-operated tap timer with Bluetooth®
• Tuya Smart app
• Manual watering: 1 min to 23 hour 59 minutes
• Manual push-button operation for quick operation without a
smartphone
• Delay: 1-7 day
• Working pressure: 1-8 bars
• Run Time: 1 min to 23 H 59min
• Irrigation Days: Week,Odd/Even,Interval
• Cycling mode: Start time, End time, irrigation time, close time,
which days
• Built in Flow meter
• 2xAA alkaline batteries ( Included- Lasts For 1 Year )
• Blinking LED low-battery alert indicates battery replacement
• Inlet: 3/4”
• Flow rate: 1.8 to 2.35 L/H
• Bluetooth 5.0 (BLE)

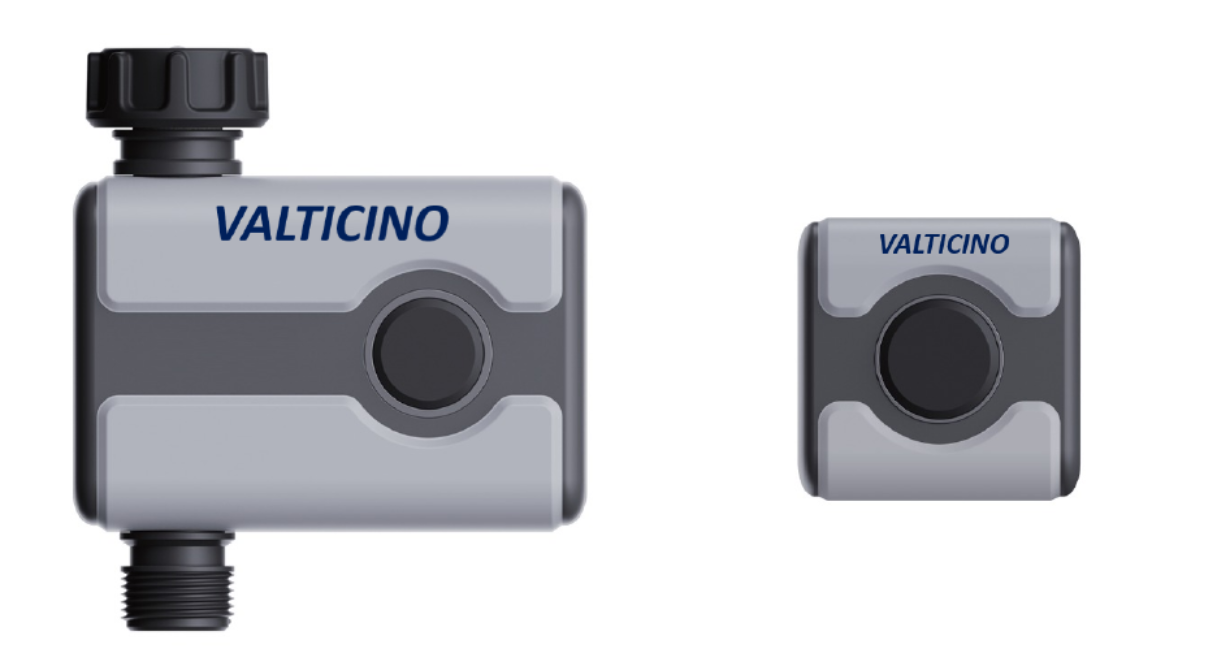

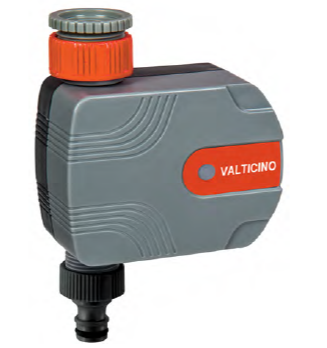

ZR-T-WIFI

Battery-operated tap timer with Bluetooth® and WiFi control
• Tuya Smart app
• Manual watering: 1 min to 23 hour 59 minutes
• Manual push-button operation for quick operation without a
smartphone
• Delay: 1-7 day
• Working pressure: 1-8 bars
• Run Time: 1 min to 23 H 59min
• Irrigation Days: Week,Odd/Even,Interval
• Cycling mode: Start time, End time, irrigation time, close time,
which days
• Built in Flow meter
• 2xAA alkaline batteries ( Included- Lasts For 1 Year )
• Blinking LED low-battery alert indicates battery replacement
• Inlet: 3/4”
• Flow rate: 1.8 to 2.35 L/H
• Bluetooth 5.0 (BLE)
• WiFi Gateway included with WiFi model.

ZR-TM

• Programmable manual watering for up to 120 minutes
• Run Time can be set at 1, 3, 5, 10, 15, 20, 30, 60, 90,
120 mins
• Frequency can be set 1, 2, 3, 4, 6, 8, 12, 24, 48, 72 H
and Week
• Time Delay feature for easy setting of desired start
watering time
• For taps with 26.5 mm(G 3/4") thread
• 2 x AA alkaline batteries required (not included)

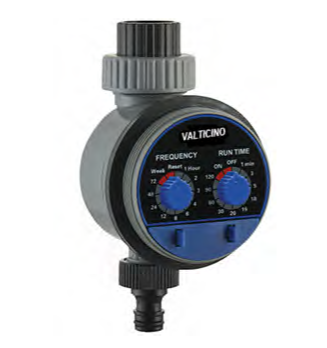

ZR-TN

• Programmable manual watering for up to 120 minutes
• Run Time can be set at 1, 3, 5, 10, 15, 20, 30, 60, 90,
120 mins
• Frequency can be set 1, 2, 3, 4, 6, 8, 12, 24, 48, 72 H
and Week
• For taps with 26.5 mm(G 3/4") thread
• 2 x AA alkaline batteries required (not included)

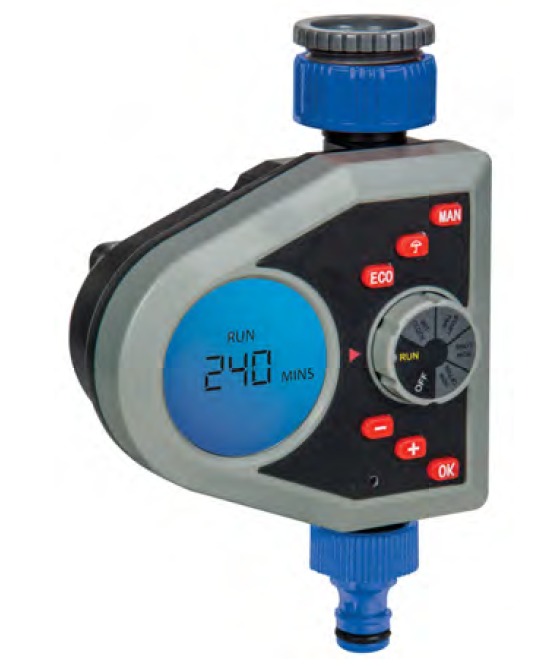

ZR-T-DD

• High quality round blue backlit LCD
• Programmable manual watering for up to 240 minutes
• Watering cycle can be set for when to start watering and
How Long can be set for 1-240 mins
• How Often can be set at every 4, 6, 12 H, and 1-15 days
• Eco feature for splitting watering cycle into mini cycles
(Every 1-240 min, Delay 1-240 min)
• Delay feature at 24, 48, 72 hours
• Rain sensor or moisture sensor connection available to
skip watering during rainy days or when soil is too wet
• For taps with 26.5mm(G 3/4”) and 33.3mm(G 1”) thread
• 2 x AA alkaline batteries required (not included)

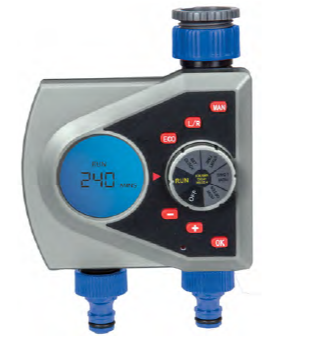

ZR-T-DD2

• High quality round blue backlit LCD
• Programmable manual watering for up to 240 minutes
• Watering cycle can be set for when to start watering and
How Long can be set for 1-240 mins
• How Often can be set at every 4, 6, 12 H, and 1-15 days
• Eco feature for splitting watering cycle into mini cycles
(Every 1-240 min, Delay 1-240 min)
• Delay feature at 24, 48, 72 hours (when dial at RUN,
press +)
• Rain sensor or moisture sensor connection available to
skip watering during rainy days or when soil is too wet
• For taps with 26.5mm(G 3/4”) and 33.3mm(G 1”) thread
• 2 x AA alkaline batteries required (not included)

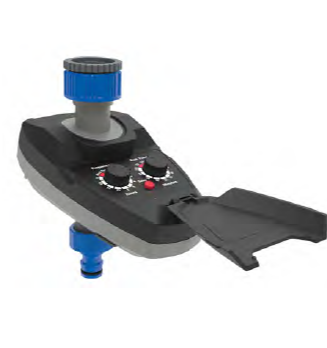

ZR-TB

• Frequency can be set at 1, 2, 3, 4, 6, 8, 12, 24, 48, 72 H,
and Week
• Run Time can be set at 1, 3, 5, 10, 15, 20, 30, 60, 90,120
mins
• Time Delay feature for easy setting of desired start
watering time
• Rain sensor or moisture sensor connection available to
skip watering during rainy days or when soil is too wet
• For taps with 26.5mm(G 3/4”) and 33.3mm(G 1”) thread
• 2 x AA alkaline batteries required (not included)

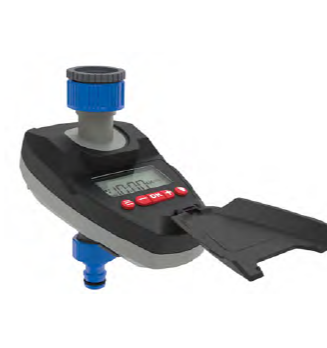

ZR-TD

• Programmable manual watering for up to 240 minutes
• Watering cycle can be set for when to start watering and
How Long can be set from 5 secs to 360 mins
• How Often can be set from 10 secs to 7 days
• Delay feature at 24, 48, 72 hours
• Rain sensor or moisture sensor connection available to
skip watering during rainy days or when soil is too wet
• For taps with 26.5mm(G 3/4”) and 33.3mm(G 1”) thread
• 2 x AA alkaline batteries required (not included)

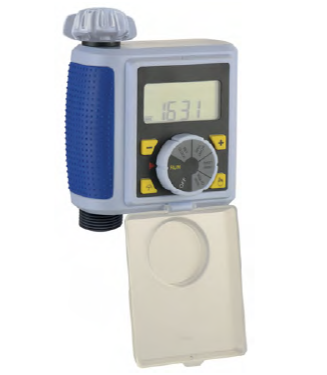

ZR-T-DDS

• Programmable manual watering for up to 240 minutes
• Run Time can be set at 5, 10, 15…55sec or 1-360min
• Frequency can be set at 10, 30sec or 1, 3, 5min or 1, 2,
4, 12h or 1-7 days
• Rain Delay settings available at 24, 48 or 72H
• Rain sensor or moisture sensor connection available to
skip watering during rainy days or when soil is too wet
• For taps with 26.5mm(G 3/4”) thread
• 2 x AA alkaline batteries required (not included)

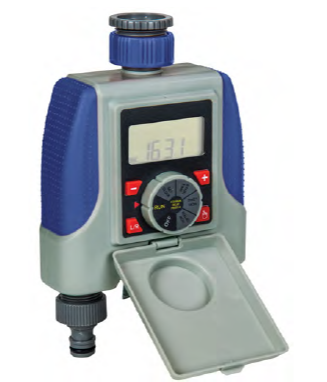

ZR-T-DDS-2

• Programmable manual watering for up to 360 minutes
• Watering cycle can be set for when to start watering and
How Long can be set for 10, 15, 20, 30, 40, 45, 50, 55
sec, or 1-360 minutes
• How Often can be set at every 30 sec or 1 , 3, 5 minutes
or 1, 2, 3, 4, 5, 6, 7 days
• Delay feature at 24, 48, 72 hours (when dial at RUN,
press +)
• Rain sensor or moisture sensor connection available to
skip watering during rainy days or when soil is too wet
• For taps with 26.5mm(G 3/4”) and 33.3mm(G 1”) thread
• 2 x AA alkaline batteries required (not included)
