Smart Controllers
Smart Controllers
Wireless type: WIFI(standard), GPRS(optional)
Input: AC 230V or AC 110\/, 50-60Hz
Output: AC 24V, 2.0A

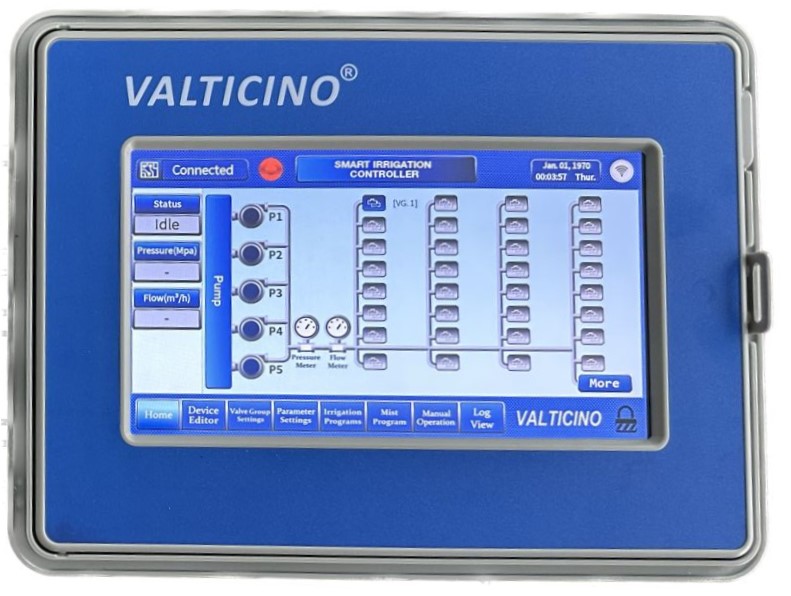

Touch screen 7,10 inch HD
256 Decoders with 64 Max valve groups
16 watering programs (Concurrent and stacked)
4 start times for each program
Five Pumps, Unlimited Sensors
Watering duration and scheduling - all options
Wireless type: WIFI(optional), GPRS(optional)
6 programs: A, B, C, D, E F . All programs can operate concurrently
8 start times per program
Indoor/Outdoor Rated
English/Multi-language
Zone run times settable from 5 seconds. to 9 hrs. 55 min.
Rain/Freeze sensing on/off button with Tri-Color LED indicator
Rain delay of 1 – 7 days
Rain/Freeze Sensor rain delay programmable from 0 – 99 hours
Seasonal % adjust by program, by month
Omit time of day window, day(s) of week, and up to 7 calendar dates
Programmable zone-to-zone delay 1 min. – 3 hrs.
Watering days: custom days of the week, odd/even, or interval days
Run/Soak cycles by program
Wireless type: WIFI(optional)
Input: AC 230V or AC 110V, 3SVA, 50-60Hz
Output: AC 24V, 0.8A
6 watering programs
6 start times for each program
Watering duration 1 minute to 12 hours 59 minutes
Water budget from 10% to 200%
Pump(M) and Sensor(R) connection
Rain sensor or moisture sensor connection available
1 x 9V alkaline batteries required (not included)

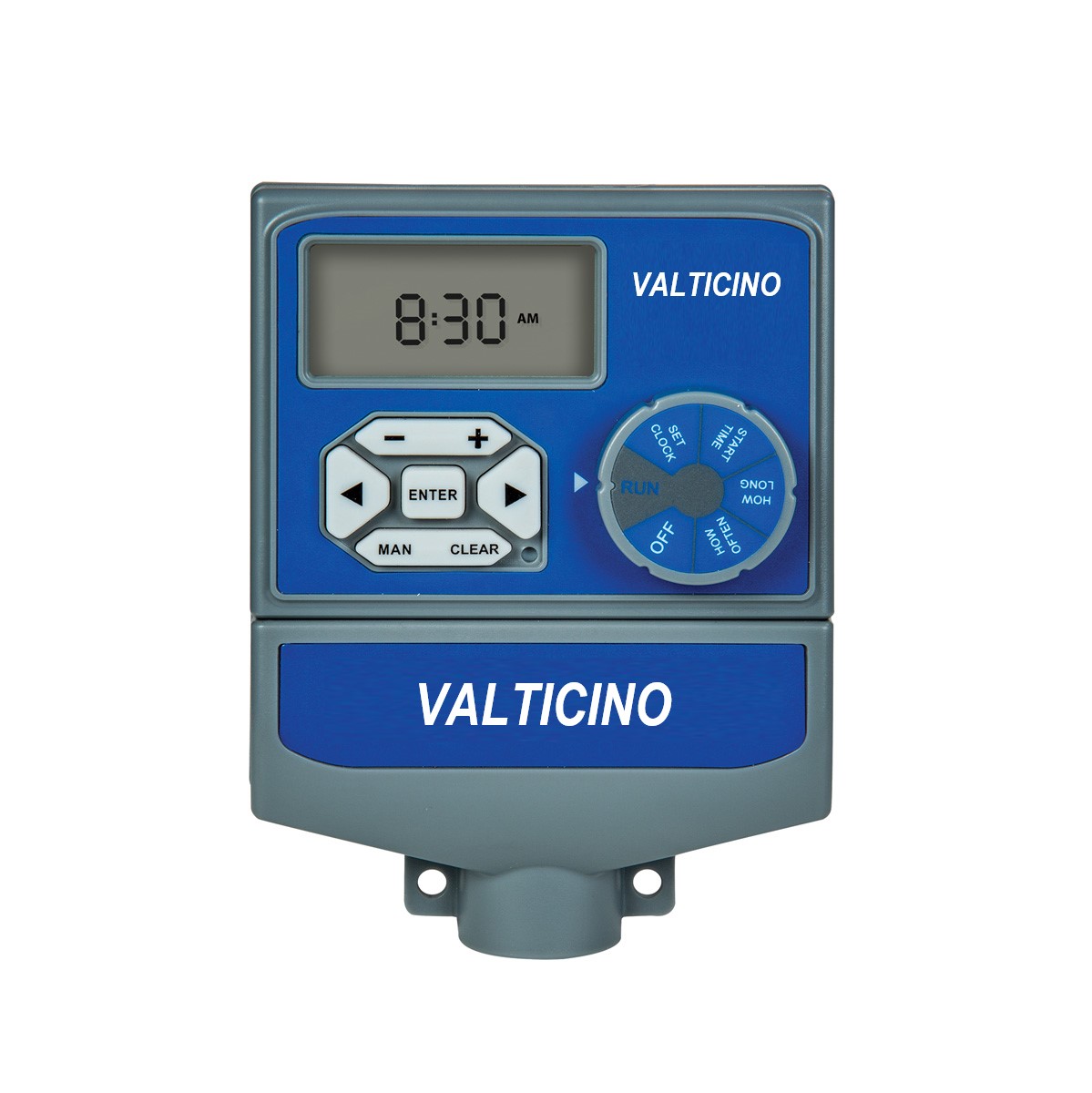

4,6,8 Stations
Two watering programs programs: A & B
4 start times per program
Indoor Rated
Zone run times settable from 1 min. to 240 mins., 1-32 days or
any day or days of the week, or odd/even days
Pump(M) and Sensor(R) connection
Rain sensor or moisture sensor connection available
Large backlit LCD display
AC Model
Input: AC 230V 50Hz, 150 mA
Output: AC 24V, 0.8A
DC Model
Input: DC 3V
Output: DC 15V
2 x AA alkaline batteries
IP68 Rated
Input: 3Volt DC Output: 12V Latch
2 watering programs
4 start times for each program
Watering duration 1-240 minutes
Water Program Week Days / Interval
Rain Delay 24 48 72 Days
Rain sensor or moisture sensor connection available 2AA batteries required (not included)
