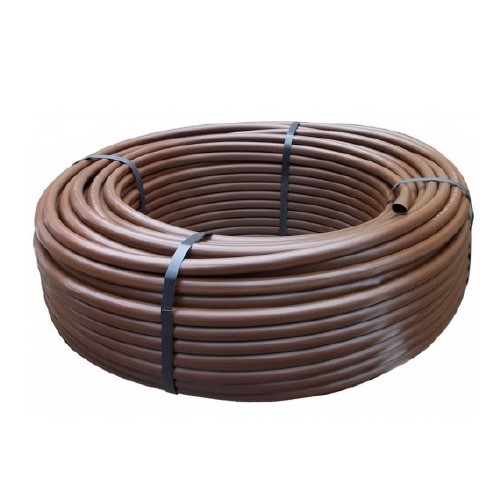

Drip Lines

Home
> PRODUCTS
> Drip Lines

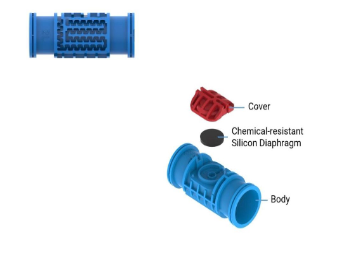

Wide pressure compensation range. Pressure
compensated (PC): Precise and equal amounts of water
are delivered over a broad pres-sure range .
Manufactured from the finest raw materials that provide
durability and long lasting performance.
Wide and accurate water passages along the labyrinth.
Special labyrinth design that ensures strong turbulence
flow of the water.
Self-flushing mechanism ensures non–clogging
uninterrupted dripper operation.
High UV resistant. Resistant to standard nutrients used in
agricultur-al.
Injected dripper, very low CV , High clog-resistance .

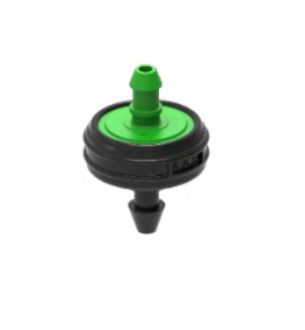

ZI PC PCND DRIPPER

Pressure compensated: Precise and equal amounts of
water are delivered over a broad pressure range.
100% uniformity of water and nutrient distribution along
the laterals.
Continuously self flushing: Continuously flushing debris,
throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted dripper operation.
ND No Drain option
Dripper can be positioned exactly where required.
Recommended filtration: 130 micron / 120 mesh. Suitable
for thick-walled pipes (0.90, 1.00, 1.20 mm)
Non-Drain Opening pressure: 0.5 Bar – 0.6 Bar Closing
pressure: 0.3 Bar – 0.4 Bar .
High UV resistant. Resistant to standard nutrients used in
agricultural.

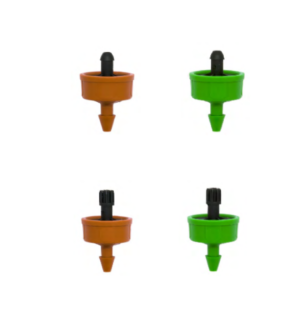

ZC PC PCND DRIPPER

Compact Pressure compensated: Precise and equal
amounts of water are delivered over a broad pressure
range.
100% uniformity of water and nutrient distribution along
the laterals.
Continuously self flushing: Continuously flushing debris,
throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted dripper operation.
Dripper can be positioned exactly where required.
Recommended filtration: 130 micron / 120 mesh.
Suitable for thick-walled pipes (0.90, 1.00, 1.20 mm)
High UV resistant. Resistant to standard nutrients used in
agricultural.
B - Barbed Option
N- Nipple Option
ND-No Drain Option

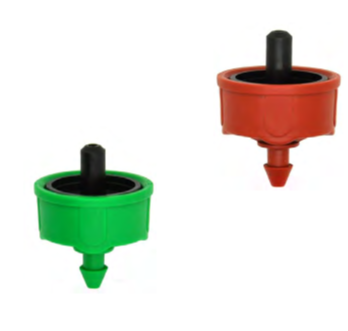

ZJ PC PCND DRIPPER
