AG Valves

ZVC -300-400-600-800    3"-4"-6"-8"

ZVC-300 FEATURES
3 Inch UPVC Water Valve Solvent Welding
Max. Flow Range 100m³/h 440USG/min
Max. Working Pressure 10bar 145psi
Min. Pressure 0.69bar 10psi
Max. Temperature 50°C 122°F


ZVC-400 FEATURES
4 Inch UPVC Water Valve Solvent Welding
Max. Flow Range 160m³/h 700USG/min
Max. Working Pressure 10bar 145psi
Min. Pressure 0.69bar 10psi
Max. Temperature 50°C 122°F

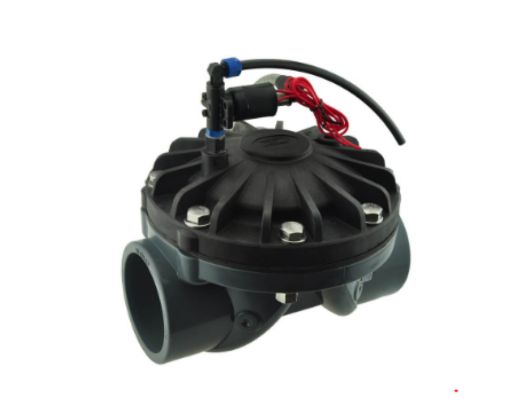

ZVC-300-400  3"- 4"

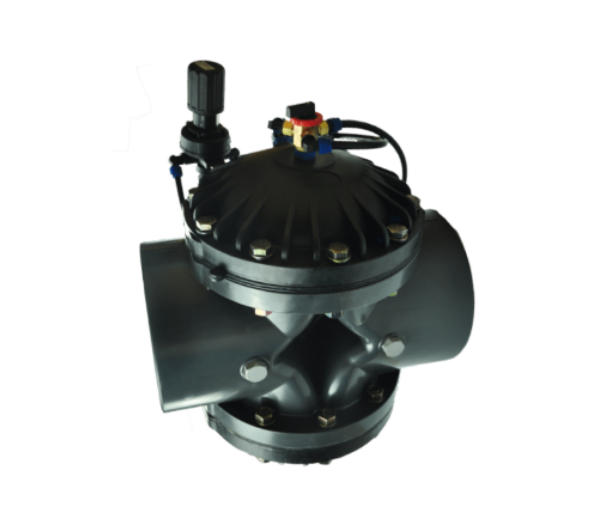

ZVC-600 / 800 FEATURES
6 & 8 Inch UPVC Water Valve Solvent Welding
Max. Flow Range 350m³/h 1540USG/min
Max. Working Pressure 10bar 145psi
Min. Pressure 0.69bar 10psi
Max. Temperature 50°C 122°F

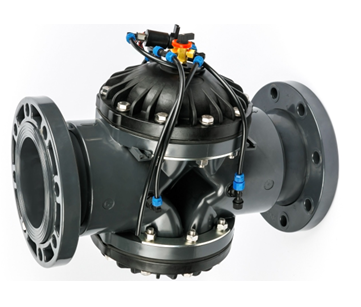

ZVC-600 / 800  6"/8"

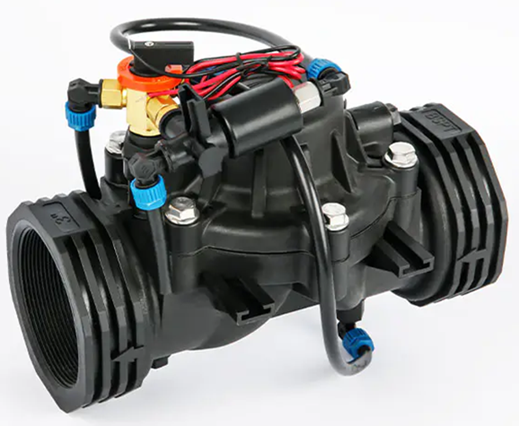

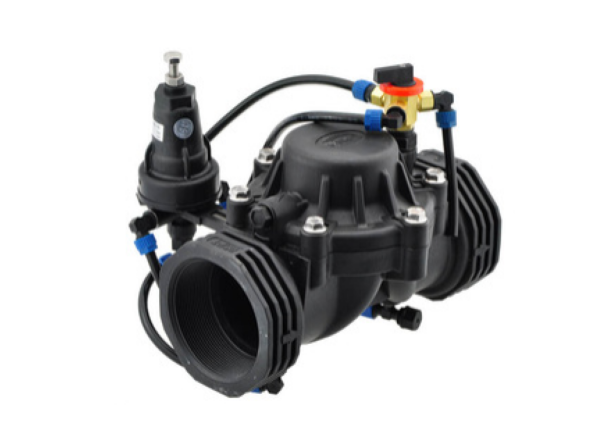

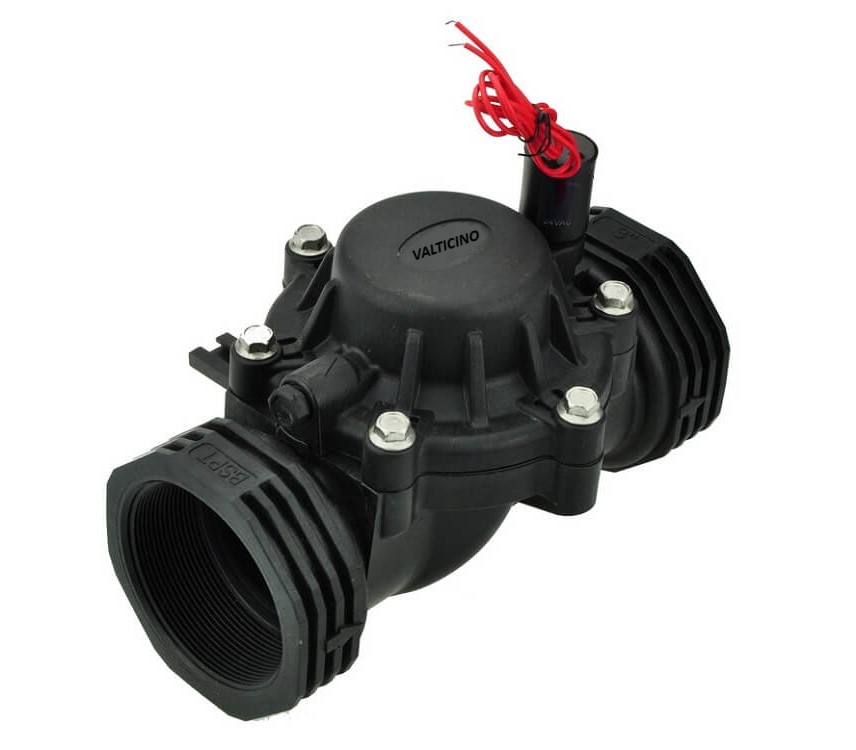

ZV-150-200-300   1.5"-2"-3"



FEATURES

150 PSI (10.3 BAR) rating
Very Low-pressure loss most suitable for Agriculture applications
Brass shock cone for smooth operation and reduction of water
hammer.
Easy-to-use internal manual bleed lever; bleeds valve downstream.
has positive stops for open and closed positions.
High-grade solenoid with stainless steel actuator.
High-strength glass-filled body and cover.
Excellent for low volume irrigation.
Contamination-resistant (CR).
Chlorine- and chloramine-resistant EPDM diaphragm material.

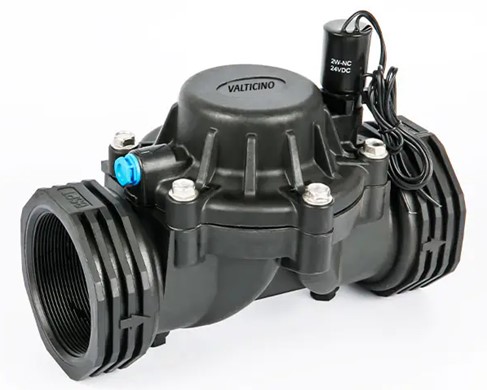

ZV-150-200-300 1.5"- 2"- 3"

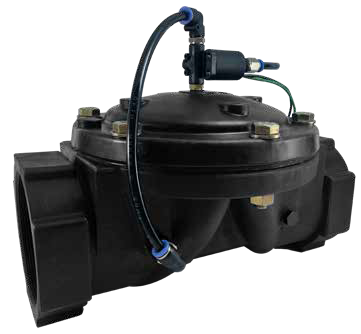

ZVGF-300-400-600   3"-4"-6"



ZVGF-300 FEATURES
3 Inch High-strength glass-filled body and cover
Max. Flow Range 100m³/h 440USG/min
Max. Working Pressure 10bar 145psi
Min. Pressure 0.69bar 10psi

Flange option


ZVGF-400 FEATURES
4 Inch High-strength glass-filled body and cover
Max. Flow Range 160m³/h 700USG/min
Max. Working Pressure 10bar 145psi
Min. Pressure 0.69bar 10psi

Flange Option

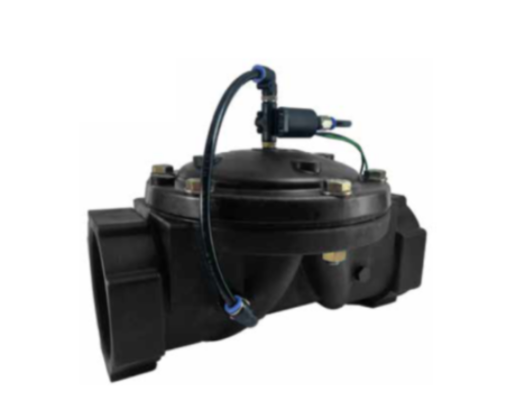

ZVGF-300-400 3"- 4"

ZVGF-600 FEATURES

6 Inch High-strength glass-filled body and cover
Max. Flow Range 350m³/h 1540USG/min
Max. Working Pressure 10bar 145psi
Min. Pressure 0.69bar 10psi

Flange body

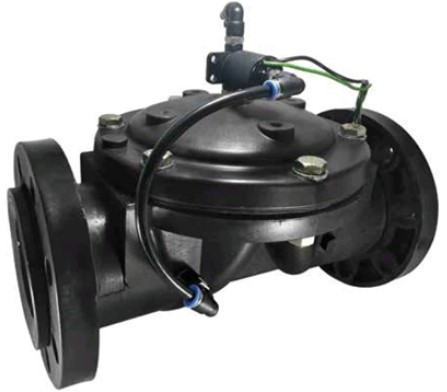

ZVGF-600  6"

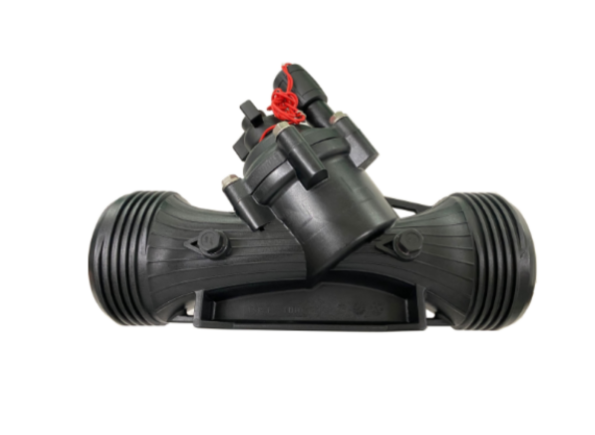

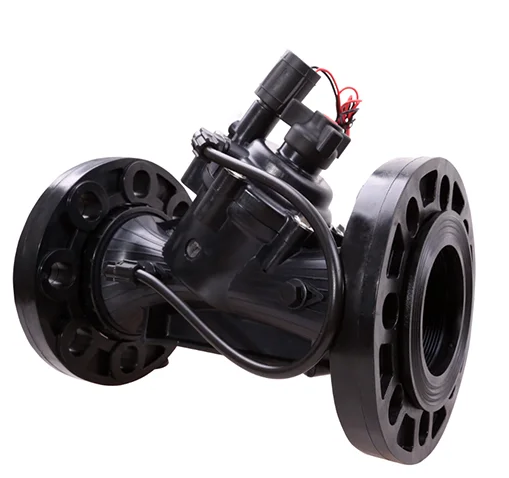

ZV-Y-TYPE-100  3"-4"-6"



FEATURES

150 PSI (10.3 BAR) rating
Built in Easy-to-use internal manual bleed lever; bleeds valve
downstream; has positive stops for open and closed positions
High-strength glass-filled body and cover
Flange threads ready for 3",4" & 6"
Flow Control
High-grade solenoid with stainless steel actuator
High-strength glass-filled body and cover
Excellent low pressure loss irrigation
Chlorine- and chloramine-resistant EPDM diaphragm material
ZV-Y-TYPE 2-Way Solenoid Controlled Valve is hydraulically
operated, diaphragm actuated control valve with internal hydraulic
Feed & Bleed control loop.

ZV-Y-TYPE-100 3"- 4"- 6"

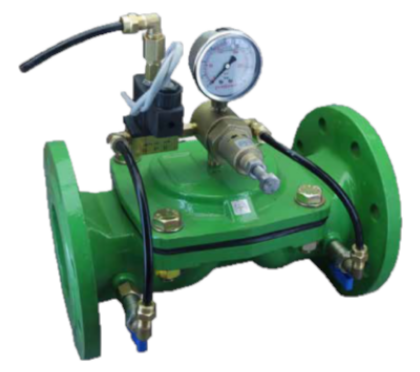

ZVDI

 200-250-300-400-500-600-800-1000-1200

  2" -2.5"- 3"- 4"- 5"- 6"- 8"- 10"- 12"



FEATURES
Ductile Iron body and cover
Working Pressure 16bar 200 psi
Min. Pressure 0.69bar 10psi.


MODELS
Flange options 2" 2.5" 3" 4" 5" 6" 8" 10" 12"
Basic Valve
Manual Override
Electrically activated 24VAC 2 way/ 24VAC 3 way/ DC
Manual Override Electrically activated 24VAC 3 way
Manual Valve Pressure reducing
Electrically activated Manual Override Pressure
reducing.



                         ZVDI                        200-250-300-400-500-600-      800-1000-1200           2"-2.5"-3"-4"-5"-6"- 8"-10"-12"
