FEATURES
Made of plastic delrin
Stainless steel springs and fulcrum pin
Dual nozzle design provides outstanding uniformity
Color-coded nozzles for easy and quick cleaning or
replacement even while operating
OPERATING DATA
WORKING PRESSURE: 2.0 - 4.0 bar
FLOW RATE: 0.36 - 1.58m3/h
SPRAY RADIUS: 10.25 - 12.75m.

FEATURES
Made of plastic delrin
Stainless steel springs and fulcrum pin
Dual nozzle design provides outstanding uniformity
Color-coded nozzles for easy and quick cleaning or
replacement even while operating
OPERATING DATA
WORKING PRESSURE: 2.0 - 4.0 bar
FLOW RATE: 0.35 - 0.93 m3/h
SPRAY RADIUS: 8.25 - 11.00 m.

FEATURES
Made of plastic delrin
Stainless steel springs and fulcrum pin
20° to 340° arc or full circle operation
Anti-back-splash drive arm
Adjustable deflector plate
Color-coded nozzles for easy and quick cleaning or
replacement even while operating
Adjustable deflector plate
OPERATING DATA
WORKING PRESSURE: 2.0 - 4.0 bar
FLOW RATE: 0.45 - 1.03m3/h
SPRAY RADIUS: 11:00 - 13:00 m.

FEATURES
Made of plastic delrin
Stainless steel springs and fulcrum pin
20° to 340° arc or full circle operation
Anti-back-splash drive arm
Adjustable deflector plate
Color-coded nozzles for easy and quick cleaning or
replacement even while operating
Adjustable deflector plate
OPERATING DATA
WORKING PRESSURE: 2.0 - 4.0 bar
FLOW RATE: 0.81 - 2.1 m3/h
SPRAY RADIUS: 13:25 - 18:00 m.

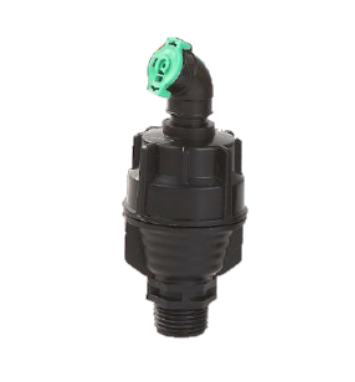

ZS SPRINKLERS

FEATURES
Made of delrin plastic
Extra-range, ball driven sprinkler
Compact, Sturdy closed protected ball engine
Color-coded bayonet nozzles for easy identification
High water distribution uniformity
High impact heavy-duty plastic materials provide
Corrosion resistance and chemicals and UV
Pressure Compensating PC option
APPLICATIONS
Designed for agricultural use in solid set, movable
lines and can be used in landscape irrigation
OPERATING DATA
WORKING PRESSURE: 2.5 - 4.0 bar
FLOW RATE: 0.36 - 0.82m3/h
SPRAY RADIUS: 8.25 - 10.5m.
